Asked: 2020-04-25T15:51:07+00:00 In:

Draw the Lewis structure for the selenium dioxide (SeO2 molecule. Be sure to include all resonanc…

Draw the Lewis structure for the selenium dioxide (SeO2 molecule. Be sure to include all resonance structures that satisfy the octet rule. 谲 Ar

    2 Answers

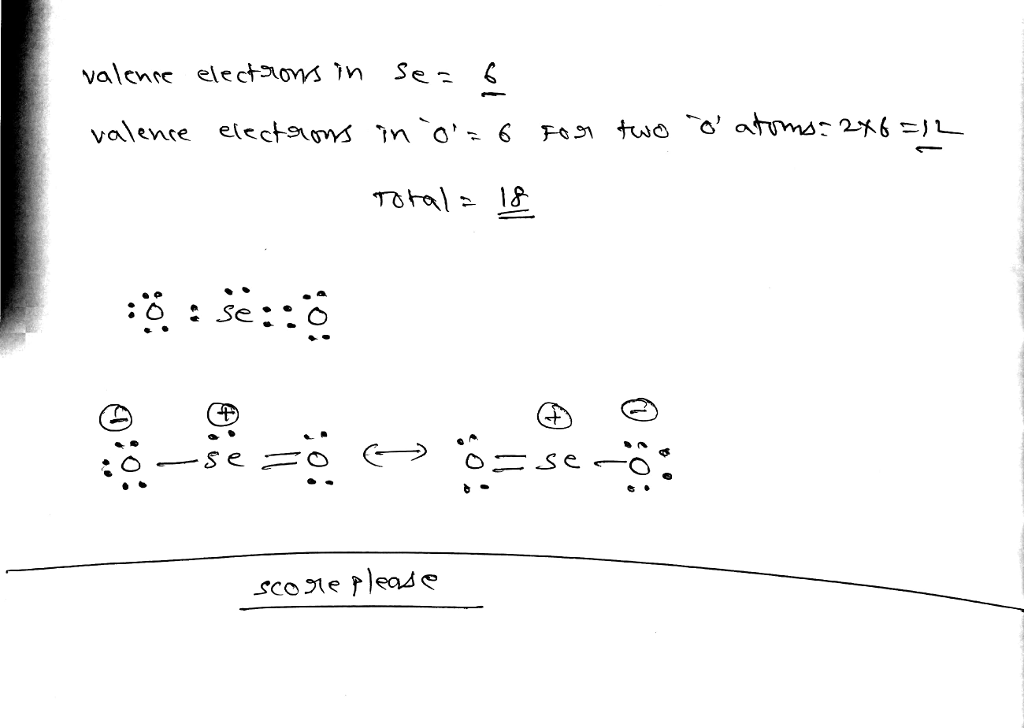

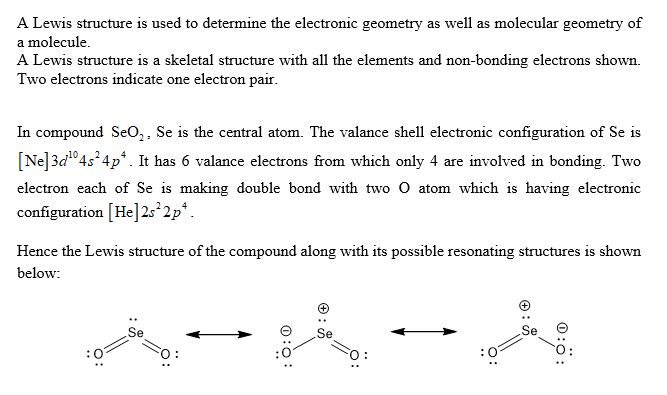

    1. A Lewis structure is used to determine the electronic geometry as well as molecular geometry of a molecule. A Lewis structure is a skeletal structure with all the elements and non-bonding electrons shown. Two electrons indicate one electron pair. In compound SeO,. Se is the central atom. The valance shell electronic configuration of Se is [Ne] 3d104s 4p. It has 6 valance electrons from which only 4 are involved in bonding. Two electron each of Se is making double bond with two O atom which is having electronic configuration [He]2s 2p Hence the Lewis structure of the compound along with its possible resonating structures is shown below: Se Se Θ

      • 0

      • 0
